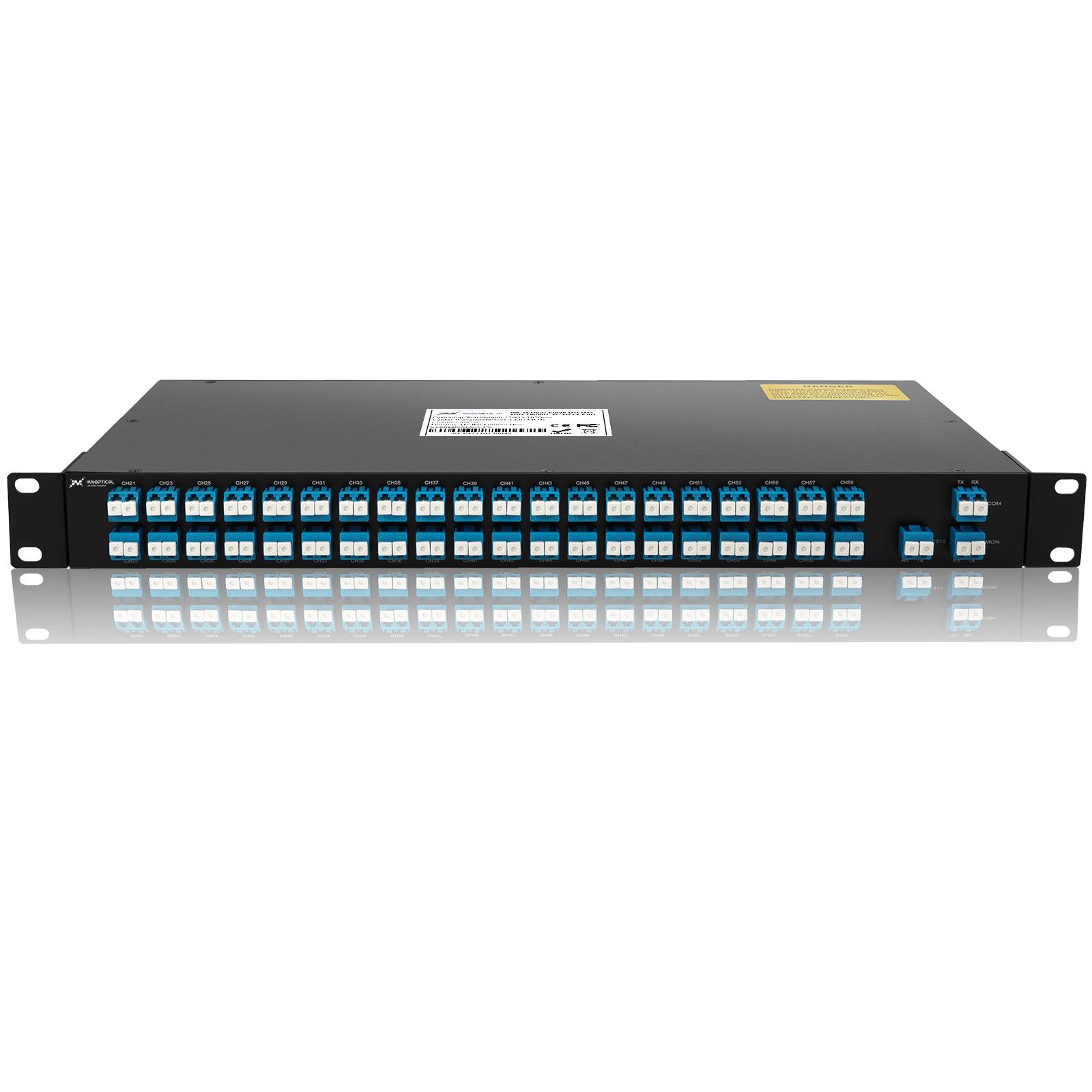

40CH/80CH 100G Athermal AWG

40CH/80CH 100G Athermal AWG

Description

Innoptical’s IN-AWG-40/48CH-RU DWDM series optical transmission system, which is usually used for long-haul transmission where wavelengths are packed tightly together over the C-band, up to 48 wavelengths in 100GHz grid(0.8nm) and 96 wavelengths in 50GHz grid(0.4nm). It’s protocol and rate transparent supporting such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel across the same fiber link. That provides a reliable, flexible and efficient high bandwidth carrying solution for the operators, Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.

Spotlights

  • Low Insertion Loss and low PDL
  • Compact size
  • Low chromatic dispersion
  • High stability and reliability
  • Good channel to channel uniformity
Get an Instant Quote
Free Sample
Fully customized
Low MOQ: 1pcs
Free design
Distribute Globally

Specification

ParameterUnitSpecifications
ITU BandGHzITU, C-band
Channel SpacingGHz100
Number of channels40CH40CH+131040CH+MONITOR40CH+1310+MONITOR
Wavelength accuracyMaxnm0.05
Insertion LossWavesMaxdB3.543.84
-1dB passbandMinnm0.3
-3dB passbandMinnm0.5
IsolationAdjacent ChannelMindB25
Non-adjacent ChannelMindB30
Total CrosstalkMindB23
Ripple in PassbandMaxdB0.75
Polarization Dependent LossMaxdB0.5
UniformityMaxdB1.5
DirectivityMindB50
Return LossMindB45
Polarization Mode DispersionMaxps0.5
Power HandlingMaxmW300
Fiber TypeCorning SMF-28 / SMF-28e or customize
Operating Temperature°C5~70
Storage Temperature°C-40~85
19’’ RackWeight1.7kg
Dimensionsmm440*230*44MM
