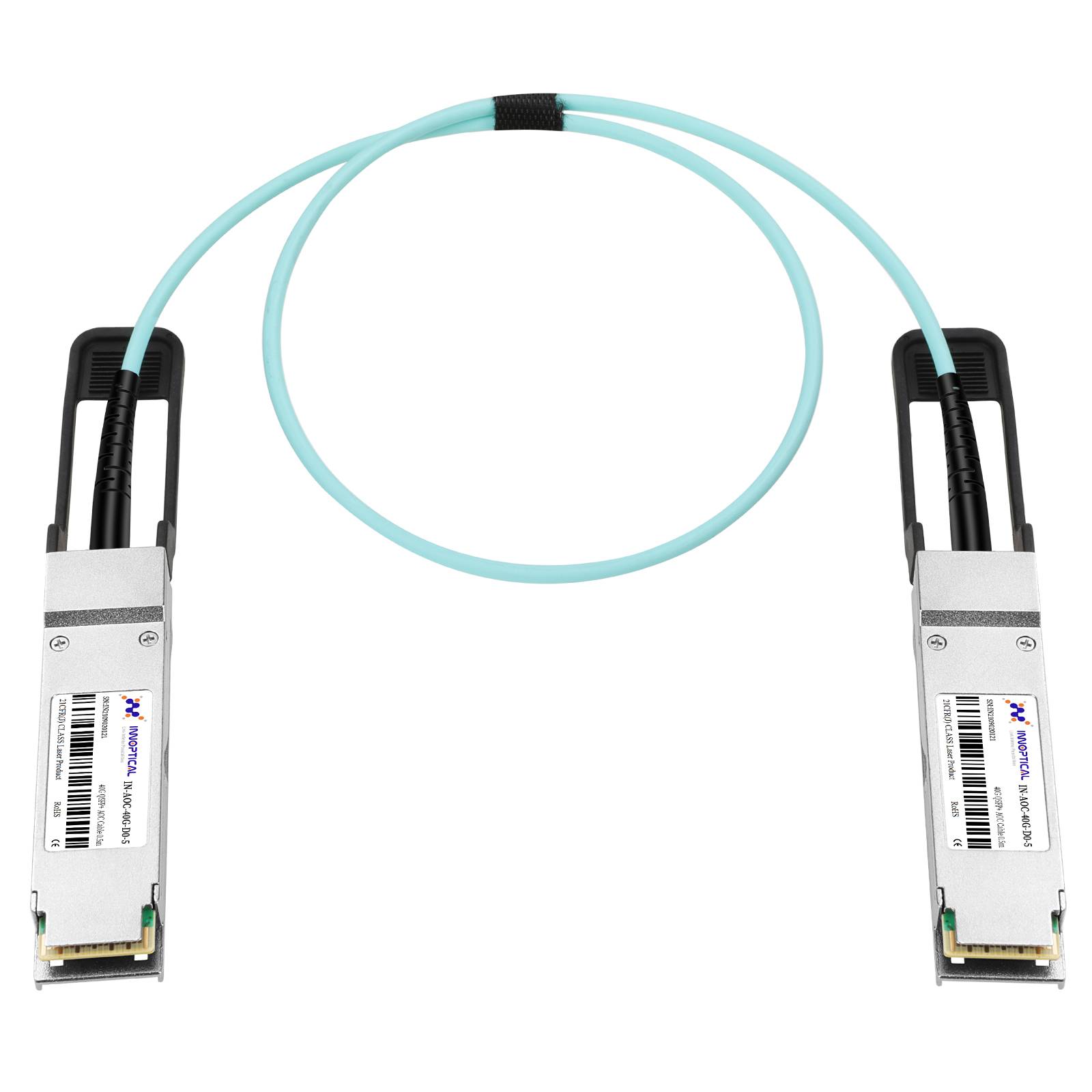

Innoptical’s IN-AOC-40G-DXXX is a high data rate parallel active optical cable (AOC), to overcome the bandwidth limitation of traditional copper cable. The AOC offers 4 independent data transmission channels and 4 data receiving channels via the multimode ribbon fibers, each capable of 10Gb/s operation. Consequently, an aggregate data rate of 40Gb/s over 100 meters transmission can be achieved by this product, to support the ultra-fast computing data exchange.
| Data Rate(Gb/s) | 40G |
| Tx | 850nm VCSEL |
| Rx | PIN |
| Transmitter Power (dBm)1 Min | -4 |
| Transmitter Power (dBm)1 Max | 2.4 |
| Receiver Power (dBm)1 Min | -5 |
| Receiver Power (dBm)1 Max | 2.4 |
| Max Power Consumption(W) | 1.5 (each QSFP+) |
| Reach | 1~100m |
| Temperature (deg C) | 0~70 |
