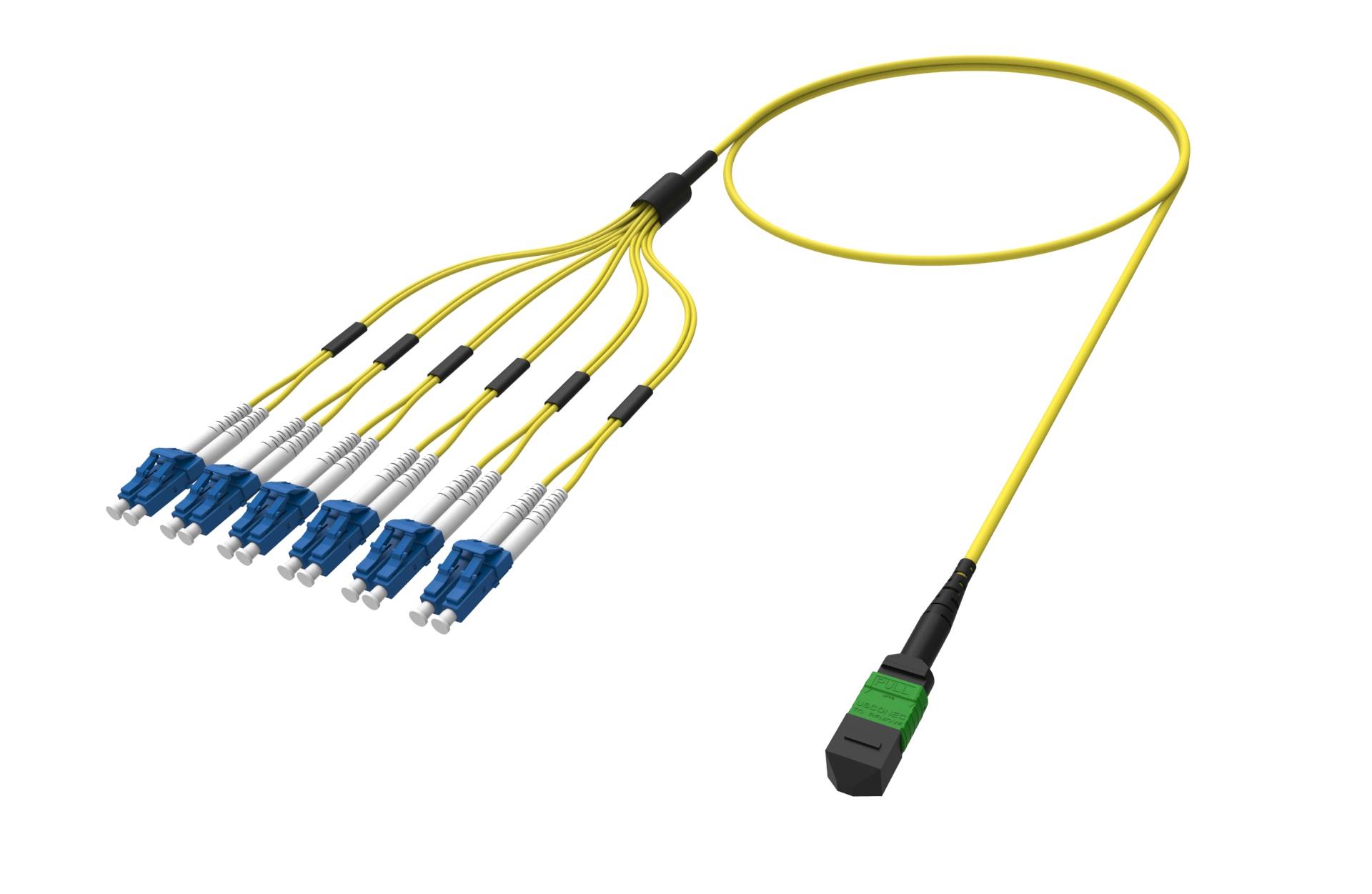

Innoptical’s MTP / MPO Hybrid trunk cables are designed to high density multi-fibers solutions, it designed to use fan- out kit convert to standard connectors. One side use MTP/ MPO high density multi-fiber connector and the other side usually with LC/SC/FC/MTRJ/E2000 and so on. It fit for different installation environment and easy to install between 40/100G optical module equipment, data centers and buildings. Our cables are 100% factory tested and can meet your special requirements. All the MTP/MPO connector compliance with Telcordia GR-1435-Core Compliant.
| Parameters | Unit | Specifications | |||||
| SM | MM | ||||||
| Standard | Elite/Low Loss | Standard | Elite/Low Loss | ||||
| Insertion Loss | Typical | dB | 0.35 | 0.2 | 0.35 | 0.2 | |
| Max | dB | 0.75 | 0.35 | 0.7 | 0.35 | ||
| Return Loss | APC | Min | dB | 60 | 30 | ||
| PC | Min | dB | 50 | 25 | |||
| Test Wavelength | nm | 1310/1550 | 850/1310 | ||||
| Operating Temperature | ℃ | -5~ 60 | |||||
| Storage Temperature | ℃ | -20~ 85 | |||||
