Standard Patch cord

Standard Patch cord

Description

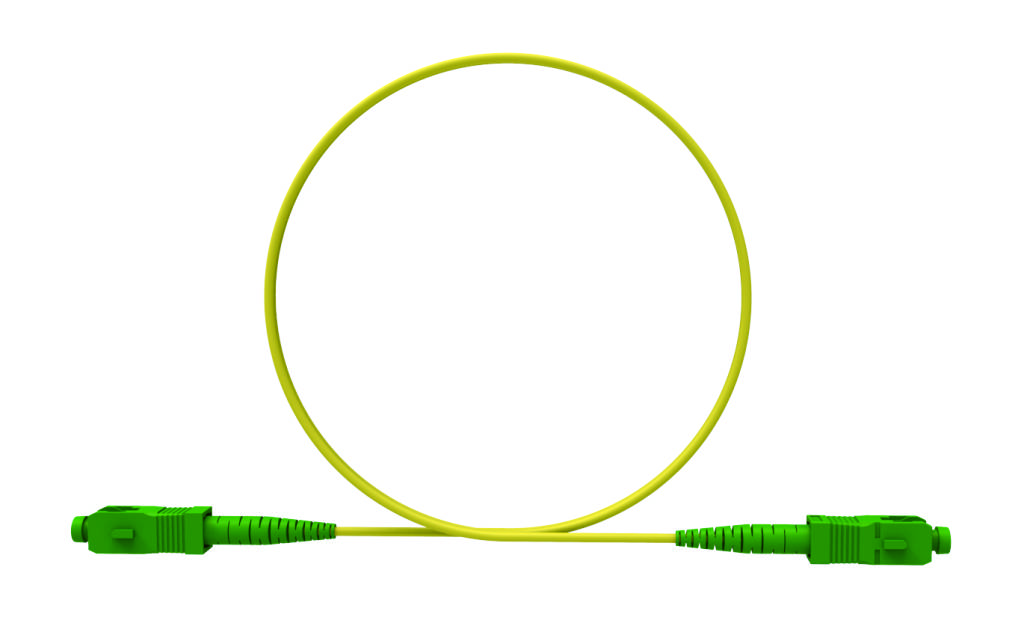

Patch cord is a removable component which connective two optical communication equipments or devices. Innoptical’s provides SC, LC, FC, ST, MU, E2000 and MT-RJ connectors assemblies, which can pass rigid optical, mechanical, environmental test based on the GR-326 requirements. And also complies with RoHS compliant.

Spotlights

High performance in IL&RL
100% pre-terminated tested
Support simplex or duplex
SM,OM1,OM2,OM3,OM4 or customized
LSZH, OFNR, OFNP available
CEROHSReach

Get an Instant Quote

Free Sample

Fully customized

Low MOQ: 1pcs

Free design

Distribute Globally

Specification

Parameters			Unit	Specifications
				SM		MM
				Standard	Elite/Low Loss	Standard	Elite/Low Loss
Insertion Loss		Typical	dB	0.35	0.2	0.35	0.2
		Max	dB	0.75	0.35	0.7	0.35
Return Loss	APC	Min	dB	60		30
	PC	Min	dB	50		25
Test Wavelength			nm	1310/1550		850/1310
Operating Temperature			℃	-5~ 60
Storage Temperature			℃	-20~ 85

	Insertion Loss		Return Loss
Type	Multi-mode	Single-mode	Single-mode		Multi-mode
	Multi-mode	Single-mode	UPC	APC	PC
SC	≤0.30dB(Typ0.20)	≤0.30dB(Typ0.20)	≥50dB(Typ55)	≥60dB	≥20dB
LC	≤0.30dB(Typ0.20)	≤0.30dB(Typ0.20)	≥50dB(Typ55)	≥60dB	≥20dB
FC	≤0.30dB(Typ0.20)	≤0.30dB(Typ0.20)	≥50dB(Typ55)	≥60dB	≥20dB
ST	≤0.30dB(Typ0.20)	≤0.30dB(Typ0.20)	≥50dB(Typ55)	≥60dB	≥20dB
MU	≤0.30dB(Typ0.20)	≤0.30dB(Typ0.20)	≥50dB(Typ55)	≥60dB	≥20dB
E2000	≤0.30dB(Typ0.20)	≤0.30dB(Typ0.20)	≥50dB(Typ55)	≥60dB	≥20dB
MT-RJ	≤0.30dB(Typ0.20)	≤0.30dB(Typ0.20)	≥50dB(Typ55)	≥60dB	≥20dB
